Solved, hbrige outputs should not be used for cam solenoids, it outputs positive 12v when going high.

Hi there, hope you guys can help me out with this 2004 Subaru Sti JDM specs with avcs and 3 cam sensors and emu black. - I have wired the sensors as per manual with cam advance sensor for left cam on VSS and right cam to cam#2. - engine starts and runs, needs much more tuning but i came across this ...

that is the same problem as i had, but mine was solved with 1.05fw.
Data is corrupt on your files, so you can also have a ground problem, do you have comunication loss when logging to pc?

Post one of the files from edl.

your wiring, gnd and 5v in tps is wrong just reverse it but if you have configured it that way its ok to leave it.

It's too sensitive would be a better choice of word I suppose............ "Too sensitive" ??? Are you joking? So you would prefer knock detection system that is inacurate, slow, and deaf as a post ? :D I think is talking about the fact that even at 1.92v engine noise is set and 0.80v of sensor valu...

Change log for version 1.184 EXP2
• Autotune bug fixed

If its just a voltage spike there is nothing you can do on the ecu, you have to check wiring, ground signals and the knock sensor itself.

Put a 1k resistor in paralel with led.

You are right, it should't throw knock code with that sensor level, either is a bug or some spike of voltage not shown on log.
Are you using shielded wire for knock sensor?
Also try to upgrade to latest version.

Are you shure the check engine is just reporting knock?
You seem to have at that position some lambda trouble.
Also you can check with "check error code" log parameter.

its EMU not DET3 but here are my settings: for det3 here is the schematic, at page 35 is specific for 106 / Saxo
http://www.ecumaster.com/wp/wp-content/ ... agrams.pdf

are you using platinum or iridium spark plugs?

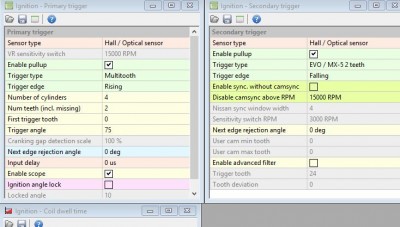

you have the same settings i have for a evo3 with cas on camshaft like this:

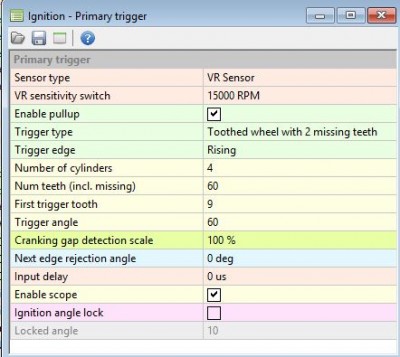

these are my settings:
if your trigger on crankshaft is only 2 teeth like this settings are ok maybie you need to enable pullup

why are you using cam#2?
post your project file, and how many thooth does the primary trigger have?

sorry now i see you have already wired them up.
Just use the scope function of the software and post it here.

4g64 may have SOHC or DOHC, which sensor do you have?
CAS module on the camshaft or crank and cam sensors separated?

search here:
viewtopic.php?f=19&t=514&p=3515&hilit=evo3#p3464

how did you wire CLT sensor? together with the stock ecu? or did you remove from stock ecu to emu?

Did you follow steps from help ? What you mean? Help in the emu client? Well I can not start autotune in the taps on the left. Only on the Top / Tools but after the Pop-up menu nothing happens. maybe you already have a open autotune window somewere, try this: close all windows with ctrl-shift-C the...
