idle valve 2JZ-GTE

All about our superior engine management unit.
Locked
lom51
Posts:14
Joined:Tue Aug 19, 2014 11:41 pm
idle valve 2JZ-GTE

Post by lom51 » Tue Aug 19, 2014 11:58 pm

Hello!
How to connect and configure the idle valve on the engine Toyota 2JZ-GTE?
Top
User avatar
Jadzwin
Site Admin
Posts:1445
Joined:Tue Aug 12, 2014 11:27 pm

Re: idle valve 2JZ-GTE

Post by Jadzwin » Wed Aug 20, 2014 11:51 am

Hi!

Please find attached wiring diagram.
Attachments
1jZ,2jz stepper motor.pdf
(67.35KiB)Downloaded 212 times
Top
lom51
Posts:14
Joined:Tue Aug 19, 2014 11:41 pm

Re: idle valve 2JZ-GTE

Post by lom51 » Wed Aug 20, 2014 3:43 pm

Idle-Parametrs-unipolar stepper - not active...
Attachments
Top
PSI-Motor
Posts:455
Joined:Fri Aug 15, 2014 10:57 pm

Re: idle valve 2JZ-GTE

Post by PSI-Motor » Wed Aug 20, 2014 4:04 pm

Close down the idle parameter view to the left in the picture and open it again then it should go active.
EcuMaster Sweden
Top
lom51
Posts:14
Joined:Tue Aug 19, 2014 11:41 pm

Re: idle valve 2JZ-GTE

Post by lom51 » Wed Aug 20, 2014 4:19 pm

Ok, thanks!

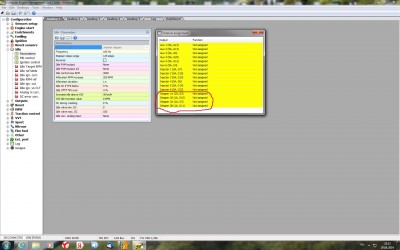

Now outputs - "not assignet" and stepper not working...
Attachments
Top
User avatar
Jadzwin
Site Admin
Posts:1445
Joined:Tue Aug 12, 2014 11:27 pm

Re: idle valve 2JZ-GTE

Post by Jadzwin » Wed Aug 20, 2014 4:47 pm

Hi!

Please check if there is idle control active 1 on the log or in idle log group window.
Your configuration seems to be ok. The fact that there is no assigned outputs in assigned outputs window is a bug (outputs are assigned for sure, bug is already fixed).
Top
