Evo3 4G63T Base map

roquete · Post by **roquete** » Mon May 18, 2015 6:45 pm

Hi, does anyone have a basemap for Mitsubishi Evo3 engine 4G63T, need especialy to set the oem trigger pattern.
Tanks.

Karel · Post by **Karel** » Thu May 21, 2015 8:24 am

roquete wrote:Hi, does anyone have a basemap for Mitsubishi Evo3 engine 4G63T, need especialy to set the oem trigger pattern.
Tanks.

Please make scope log, save it and post.

Kisielisodd · Post by **Kisielisodd** » Thu May 21, 2015 1:02 pm

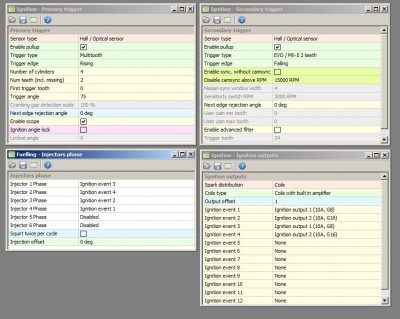

EVO 3 ignition system is identical as in evo 4 5 6 7 8 9.
Settings for EVO 4-9 should fit to EVO 1-3 so try this one.

Evo 1-3 may have coils in opposite phase so if engine will stall during cranking change output offset to 1

Check timing with strobe lamp.

roquete · Post by **roquete** » Thu May 21, 2015 4:07 pm

Hi, tanks already got a basemap i was only asking for it because of the ignition setup as it was making my head spin the fact the camshaft had half the rotation so i could not put 4 teeth. Now i understand.
tanks to all.

Heinolution · Post by **Heinolution** » Mon Oct 29, 2018 8:59 am

Hi all,

iff anyone has an base map of an 4G63T to share with me, it would be highly appreciated

Kind regards
