2JZTGTE VVTI wire and setting

Post by paryoto.semesta » Sun Sep 25, 2016 4:22 am

VVTI is not connected.

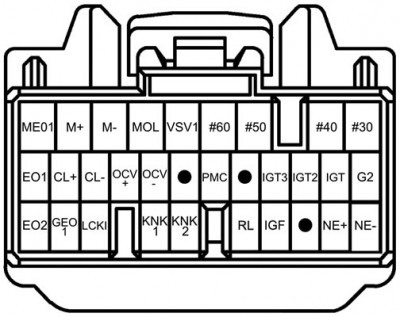

From 2JZTGTE VVTI pinout:

OCV-
VVTi Solenoid
Output
This pin control the solenoid that controls position of intake camshaft

OCV+
VVTi Solenoid
Output
This pin control the solenoid that controls position of intake camshaft

Where OCV- and OCV+ should be wired?

What numbers should be in parameters?
Attachments
Top
Karel
Posts:408
Joined:Wed Sep 10, 2014 11:58 am
Location:Czech Republic
Contact:
Contact Karel

Re: 2JZTGTE VVTI wire and setting

Post by Karel » Sun Sep 25, 2016 8:42 pm

Easy as it can be.

One +12V
Second to EMU AUX

Nothing special.
Top
paryoto.semesta
Posts:29
Joined:Thu Aug 11, 2016 4:48 am

Re: 2JZTGTE VVTI wire and setting

Post by paryoto.semesta » Mon Sep 26, 2016 5:00 am

Got it.

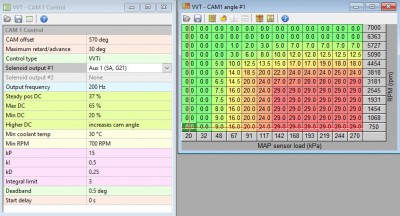

How about parameters (CAM control and angle)?
Just leave them as default?
Top
