IAT sensor wiring

[kamikaz33]

Hello, since the car doesnt have a IAT sensor, how would the wiring be done to the DET3?

Ground -> sensor -> Analog#4 IN(pin16) ???

Or should the +5V Output be used with a Resistor trough the sensor to the Analgo in beeing the resistor value the one used in RX on calibration Menu?

+5V out(pin12) -> XXK Resistor -> Sensor -> Analog #4 IN(pin16) ??


BTW it is a Vauxhall Calibra Turbo (C20LET) Threaded 2 pin IAT(is this the GM IAT type in default sensor Types)??.


Thank you!

[kamikaz33]

ok, nevermind, that is on the FIT Manual and i guess the +5V out is good for this.
Is it just me or it looks like everytime we take a look at the manual there allways seems to be something new on it...

in case someone comes with the same doubt...

[ktsirigotakis]

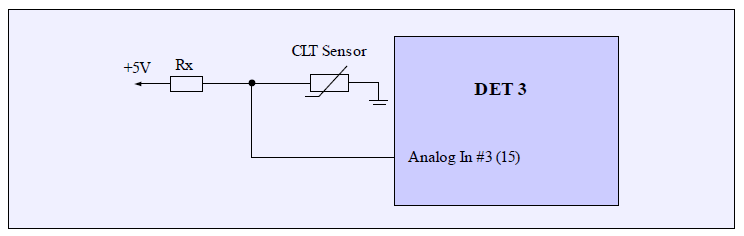

5v from det3 to one pin of clt and other pin to analog 4

[kamikaz33]

Yes, thats how i have done, but with a 2k resistor on it which was i had in handy, and seems to be working ok!

ill make my own Knock detector/analyser now and i should be fine to start tuning it properly as soon as the wideband arrives!

thanks!

[ktsirigotakis]

don't blow up the engine good lack

[ihiryu]

First off, sorry for bumping such an old thread.

My question is with the IAT, I'll be using a GM unit. There's also a preloaded scale from ECUMasters built into the DET3. If I hook up the IAT, will I still have to run a resistor?
