Boost Control Wiring

Post by felipeandrest205 » Tue Jun 30, 2015 8:49 am

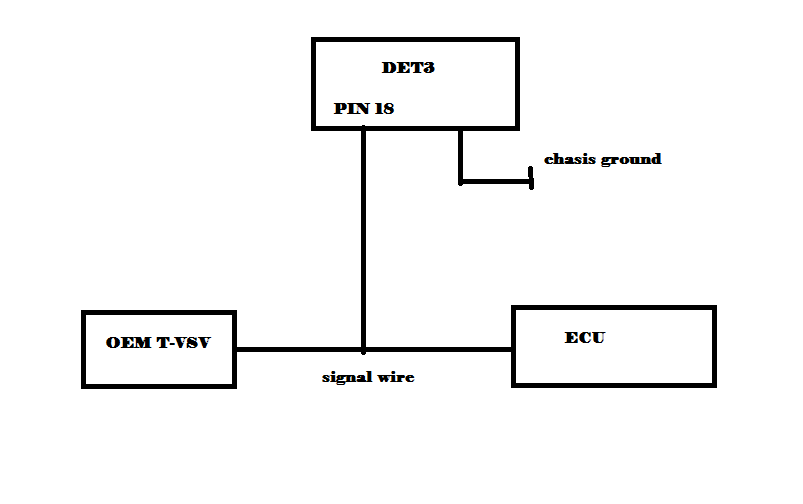

Is this the way to wire the oem tvsv? Its on a celica st205, just t-splice?
Attachments
bc wiring.png
bc wiring.png (8.62KiB)Viewed 1362 times
Top
User avatar
Kisielisodd
ECUMASTER TEAM
Posts:227
Joined:Fri Aug 15, 2014 9:49 pm

Re: Boost Control Wiring

Post by Kisielisodd » Tue Jun 30, 2015 10:01 am

Cut wire from ECU to solenoid. Signal from stock ECU will interfere with signal from DET3. Do not connect it as a T-splice
Top
felipeandrest205
Posts:41
Joined:Wed Feb 04, 2015 9:01 am

Re: Boost Control Wiring

Post by felipeandrest205 » Tue Jun 30, 2015 10:54 pm

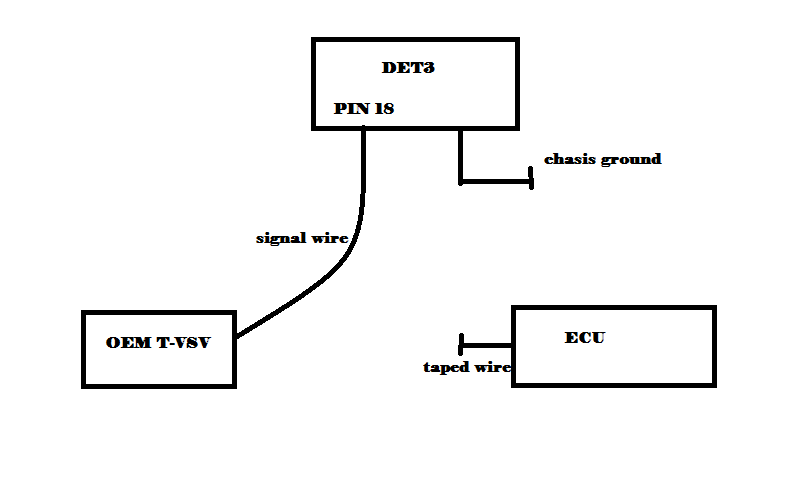

So you mean like this?
Attachments
bc wiring.png
bc wiring.png (8.48KiB)Viewed 1347 times
Top
User avatar
Kisielisodd
ECUMASTER TEAM
Posts:227
Joined:Fri Aug 15, 2014 9:49 pm

Re: Boost Control Wiring

Post by Kisielisodd » Wed Jul 01, 2015 10:51 am

Yes, this is what i mean
Top
