Need Wiring for Toyota 1NZ-FE (VIOS)
Posted: Sun Jan 17, 2016 6:51 pm
by Baroto
Hi...
Any one can help me about wiring diagram to install DET3 for 1nzfe engine.
As attach is ECU wiring diagram.
- ECS1.pdf
- 1NZFE ECU Diagram
- (76.39KiB)Downloaded 88 times

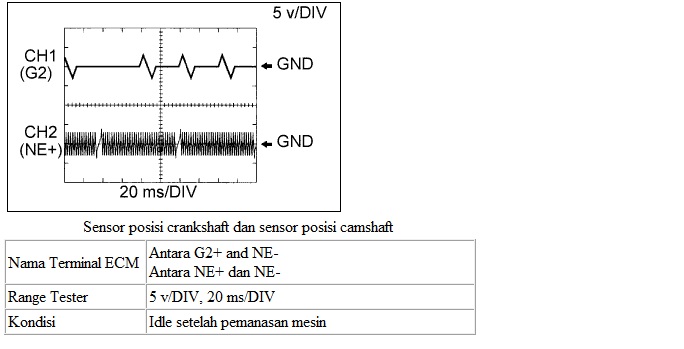

- CKP Signal
regards,
Baroto
Re: Need Wiring for Toyota 1NZ-FE (VIOS)
Posted: Tue Aug 30, 2016 6:57 am
by Baroto
Dear admin
How can i unlock rev limiter?
Re: Need Wiring for Toyota 1NZ-FE (VIOS)
Posted: Tue Aug 30, 2016 10:12 am
by Kisielisodd
You are not able to do it in piggyback mode. Rev limiter is controlled by stock ECU.
2 solutions
1 - Stock ECU Remap
2 - FIT mode for DET3
Re: Need Wiring for Toyota 1NZ-FE (VIOS)
Posted: Thu Jun 01, 2017 9:35 pm
by Baroto
Kisielisodd wrote:You are not able to do it in piggyback mode. Rev limiter is controlled by stock ECU.
2 solutions
1 - Stock ECU Remap
2 - FIT mode for DET3
For option 2. FIT Mode.
If rev limit cut off by ignition from main ecu. How can i manipulate?
Re: Need Wiring for Toyota 1NZ-FE (VIOS)
Posted: Sun Jun 04, 2017 8:53 pm
by runedk
Not possible to change ignition rev limiter. Only fuelcut can be changed in FIT mode
Re: Need Wiring for Toyota 1NZ-FE (VIOS)
Posted: Tue Jun 13, 2017 9:54 pm
by Baroto
runedk wrote:Not possible to change ignition rev limiter. Only fuelcut can be changed in FIT mode
Can you give me schematic for toyota 1NZ-FE in FIT Mode.
If I want to install Individual throttle body, how about to convert MAF to MAP internal 400kpa.
