opel/vauxhal C20Xe configuration

[Botasjr]

hi

i present my self, because is my first time on this forum, i have tuned some emu and det ecus, but i never have installed any, and now im starting with an EMU ecu on my small racing car, if i post a photo you can call me crazy...
my name is Andre Pires, and i have a small tuing company in portugal, i have a big experience on megasquirts since 2007, i have dyno, afr, knock etc, the essencial, and now i need something more,

im installing an emu on a c20xe engine
original engine, orignal, injectors, original wasted spark ignition coil (bosch 3 wires), throttle etc,

my big questions are about the

- primary trigguer configuration on the software
- injectors configuration / firing order

the engine runs on 1-3-4-2

on the ecu plugs i have

4 injectors wires G-1 G-15 G-23 and G-6
2 ignition drivers G-8 and G-16
primary trigguer on B-7 (+) B-18 (-) and B-24 (shield), i dont use the cam trigguer.
and all other are normal


i know that those engines have a 60-2 crank wheel, and im not really sure, but the crank sensor alligns at theet nº19 when the 1st cylinder is at TDC, i always check this with strobo light.

someone can help me with this???

regards

[astra vxr]

its not a lot differnt to megasquirt been useing m/s for 10 years and switched to emu now

i have basic settings some where ill dig them out for you what coil pack are you useing ? gen xe one or later ecotek one ?

10deg before tdc is tooth 9
or
114 deg

injectors will be your fireing order or you can go more forward 1,3,4,2 or 3,4,2,1

coil will be same as megasquirt to fire one bank and then the other

ill dig out my settings one i get home

[Botasjr]

there is some photos of my instalation
like you can see the original ignition bosch coil
is this a good coil???

http://fotos.sapo.pt/xpower/fotos/?uid= ... H3uC4r3cGY

http://fotos.sapo.pt/xpower/fotos/?uid= ... cI9K6PvEiZ

http://fotos.sapo.pt/xpower/fotos/?uid= ... VTk3tEzIWy

http://fotos.sapo.pt/xpower/fotos/?uid= ... vC3zBz9y7z

sorry but i cant post the photos like as image, please see on the browser.

regards

[Botasjr]

im having very strange problem on cranking

im just testing the crank vr sensor input, i dont have any coil or injector connected,

sometimes i get the aprox. 200 cranking rpms

and some other times i dont get nothing,

someone can help me???

[clamp]

maybe your crankshaft sensor is broken!

p.s about the pictures what is right configuration for this camshaft sensor ? and why you don`t use camshaft sensor?

[Botasjr]

with the digital multimeter i only get 1.5 volts / AC
is this a good value???

i dont use the camshaft to simplify the conections, for now...
im trying to set a wasted spark configuration.

[Botasjr]

ok

after a few days,

i got the engine runing, at the first start, good....

yesterday i have tuned the engine on the dyno, everithing is good till 6500 rpm,
above 6500 rpm the engine revs very bad, it seems that have a spark cut rev limiter, it seems that have spark retard, but i have checked with the strobo light on the dyno and i dont have any ignition timimg movement.

i thing is an ignition components problem, because, first we are using old spark plugs, and the problem appear at 5800 rpm, with new spark plugs the problem rise to 6500 rpm.

i read somewere about the original xe ignition coil problem, is that correct???

you can see the configuration and a log attached.

and a video here:

https://www.youtube.com/watch?v=DdVMGGchSB4

[4takter]

34° Ignition at WOT will kill this Engine. Have you noticed signs of Detonation?

[Botasjr]

34° Ignition at WOT will kill this Engine. Have you noticed signs of Detonation?

are you sure????

i see 24

and with the strobo light shows me very near of a 25º that i have on the puley.

and with the knok phones i can ear any sign of detonation.

[Botasjr]

now i see one thing that i maybe need to test, i dont know,

i have rising edge on the primary trigguer
could this affect the engine?

[PSI-Motor]

now i see one thing that i maybe need to test, i dont know,

i have rising edge on the primary trigguer
could this affect the engine?

Use scope function to se wich you should use.

[4takter]

Sorry, you are right 25 at WOT. I had a look in the wrong column. (to much ecu Brands at the moment )

[HVR Team]

now i see one thing that i maybe need to test, i dont know,

i have rising edge on the primary trigguer
could this affect the engine?

Hello
Which crank sensor is in use, had the same problem with the Bosch sensor, I replaced it with Hella Sensor, operates at 9000 rpm with no problems

[Botasjr]

now i see one thing that i maybe need to test, i dont know,

i have rising edge on the primary trigguer
could this affect the engine?

Hello
Which crank sensor is in use, had the same problem with the Bosch sensor, I replaced it with Hella Sensor, operates at 9000 rpm with no problems

im using a brand new original bosch sensor

[astra vxr]

the coil pack new ???

we use the ecotec coil pack and that does the same thing when its getting old and we run 3 bar of boost on one of these coil packs up to 8200

but the sensors are known for it after 6.5k hall sensors are better over vr ones but if its a new sensor and its wired correct then it should be a problem we have had a vr to 9.5k with out problems a few years ago on megasquirt

[astra vxr]

are you useing map sensor ?? going buy the settings you are and the log is showing 100kpa all the time

[Botasjr]

are you useing map sensor ?? going buy the settings you are and the log is showing 100kpa all the time

no im using the alpha-n

on that configuration file, the barometric correction is no "on", for now...

[Botasjr]

the coil pack new ???

we use the ecotec coil pack and that does the same thing when its getting old and we run 3 bar of boost on one of these coil packs up to 8200

but the sensors are known for it after 6.5k hall sensors are better over vr ones but if its a new sensor and its wired correct then it should be a problem we have had a vr to 9.5k with out problems a few years ago on megasquirt

i dont thing this is a vr sensor problem, because i dont lose crank signal, all the rev range.

im thinking to install a 032 905 106B vag coil, i use them on others install with success,
this coil have a built in driver.

do you have a picture of this ecotec coil??? or reference???

regards

[astra vxr]

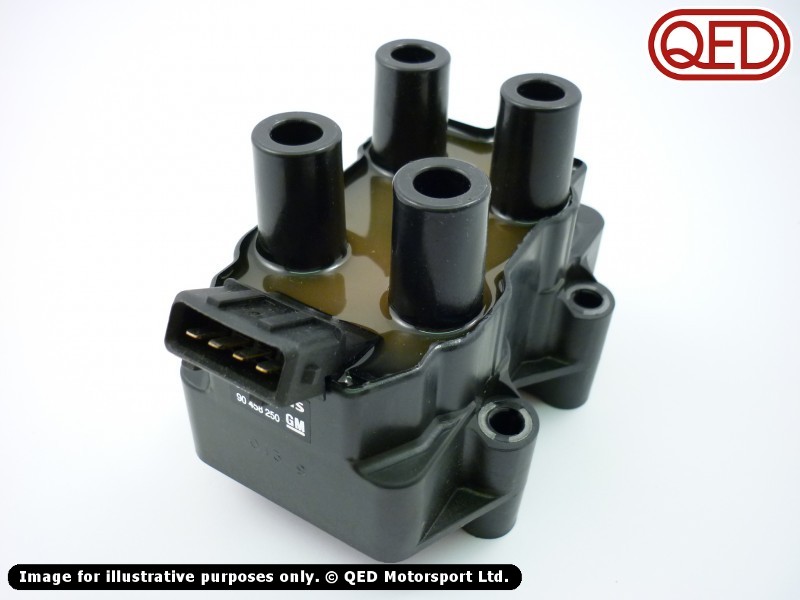

this one is what we used to use

[HVR Team]

the coil pack new ???

we use the ecotec coil pack and that does the same thing when its getting old and we run 3 bar of boost on one of these coil packs up to 8200

but the sensors are known for it after 6.5k hall sensors are better over vr ones but if its a new sensor and its wired correct then it should be a problem we have had a vr to 9.5k with out problems a few years ago on megasquirt

i dont thing this is a vr sensor problem, because i dont lose crank signal, all the rev range.

im thinking to install a 032 905 106B vag coil, i use them on others install with success,
this coil have a built in driver.

do you have a picture of this ecotec coil??? or reference???

regards

Hello
According to log, is looks that the engine goes into the speed limiter(Fuel cut), set you at 7300 rpm, then everything is ok, works as you have set
