1jz ecu setup

Santi253 · Post by **Santi253** » Mon Dec 14, 2015 11:06 am

having trouble with my emu and getting setup
says inactive

injector and coil phase
153624 in that order for both

iacv not hooked up

550cc denso injectors

can someone help me setup a base map for this thing

RHD · Post by **RHD** » Mon Dec 14, 2015 3:21 pm

you will need to adapt it to suit your wiring but these settings do work

Scooter · Post by **Scooter** » Tue Dec 15, 2015 3:22 am

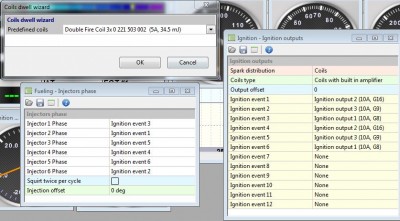

This is the ignition outputs and injector outputs I'm using, set at 10deg BTDC too. Your setup will depend on what coil setup you are running too, so check the coil wizard. here is a map with oem VVTI coils, set as wasted spark

tommyboyblitz · Post by **tommyboyblitz** » Wed Dec 16, 2015 1:14 am

RHD wrote:you will need to adapt it to suit your wiring but these settings do work

Im using this map and seems to be working well. The other one was very rich.

Im running 1jz gte vvti no vvti yet or a proper tune, but is working well and very smooth.

Santi253 · Post by **Santi253** » Wed Dec 16, 2015 4:01 am

got my jz to run and idle
seems like the ignition and coil pack order was wrong,
i had it set 153624 life the firing order and some timing settings were wrong

thanks for the help
