Release date: Q1 2026

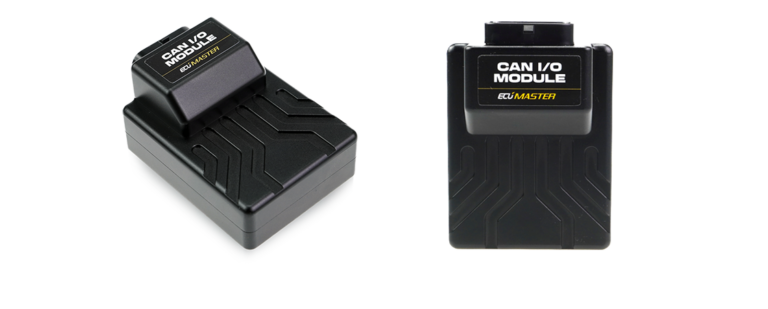

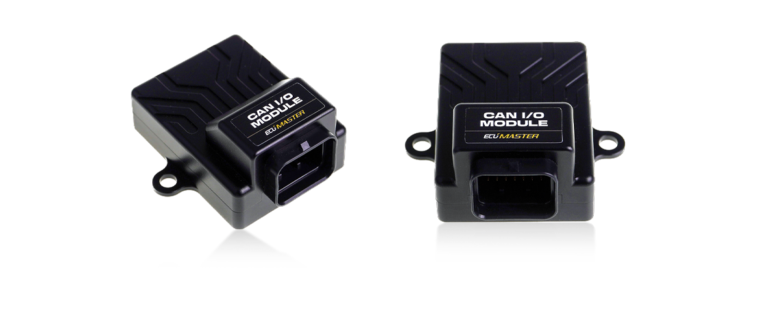

CAN I/O Module is a compact device that transmits up to 8 switch states and 8 analog signals over CAN bus. It has 4 built-in low side outputs that can be activated with a CAN bus message. The device is designed to work with EMU and PMU. It can also be used with any other devices with custom configurable CAN BUS inputs.

Key Features:

• 8 switch states and 8 analog signals over CAN bus
• 4 built-in low side outputs
• Works with EMU and PMU,
• and any other devices with custom configurable CAN BUS inputs.

Specification

• 8 switch inputs (switched to ground)
• 8 analog inputs / rotary switch (0-5V, 10bits)
• 2 high side outputs (7A), 2 low side outputs (5A)
• 6-22V power supply
• +5V output for powering rotary switches, sensors and potentiometers
• Firmware upgrade over the CAN bus
• Communication: CAN 2.0A/B
• Bitrates: 125, 250, 500, 1000kbps
• Configuration: ECUMASTER Light Client
