Gateway Lite

Release date: Q2 2026

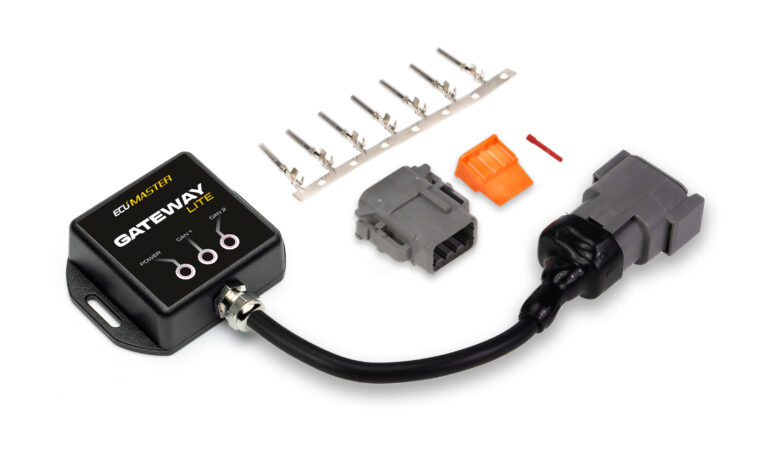

The Ecumaster Gateway Lite is designed to connect two separate CAN buses, which may operate at different baud rates. It enables frame routing between these buses in either direction, using configurable rules. Each rule can define whether frames should be Passed, Blocked, or Remapped. The device is fully configurable through the Light Client interface.



Key Features:

  • Supports two independent CAN buses with different baud rates.
  • Frame routing with configurable rules.
  • Diagnostic capabilities for monitoring CAN bus states and frame losses.
  • BEAN/MPX



Specification

  • Temperature range: AECQ GRADE3 (-40°C to +85°C)
  • Operating supply voltage: 12V
  • Weight: 100 g
  • Dimensions: 68 × 50 × 20 mm
  • Mounting mechanism: 2 × M3 bolts
  • Status indicator 3 LEDs (from left to right): Power, CAN 1, CAN 2
  • Connector: Deutsch DTM04-8P
  • CAN termination: No onboard termination
  • CAN bus bitrate: 1 Mbps (default), 500 kbps, 250 kbps, 125 kbps
  • CAN interface: 2 × CAN2.0 A/B
  • PC communication: Using USB to CAN interface (Ecumaster USBtoCAN, Peak, Kvaser
